CANopen Magic Standard

by EmSA
Original price $590.00 - Original price $905.00
Original price
$590.00 - $905.00
Current price $590.00

Low cost basic CANopen configuration and analysis tool. Runs on all versions of Windows and provides access to Object Dictionary entries, shows messages on the CAN bus, etc.

CANopen Magic Standard is an easy to use but sophisticated utility for accessing and controlling nodes on a CANopen Network. It allows read and write accesses to the process data and the configuration variables of CANopen nodes. Single nodes or entire networks can be configured, monitored, analyzed and tested. It works with multiple low cost CAN interfaces.

CANopen Magic Standard is the cut down version of CANopen Magic Professional. Although there is a small overlap in the features and functionality between the Standard and Pro versions, the Pro version contains a large number of enhancements and improvements over the regular version, making it more suitable for professional development assistance.


The following is a list of features in CANopen Magic Standard. The list is not exhaustive by any means, but does give a good overview of the abilities of CANopen Magic Standard.

  • SDO Upload (read from a node)

    • Display of read data in ASCII

    • Display of read data in decimal Integer and Unsigned integer

    • Display of read data in Hexadecimal

    • Store read data in a file

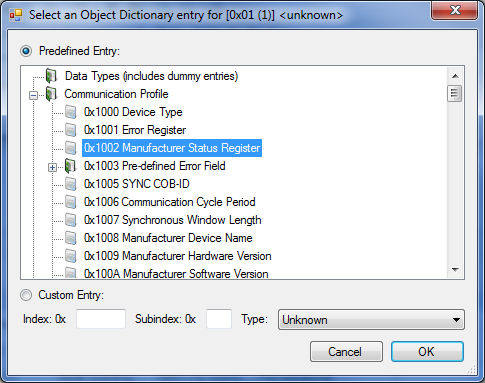

    • Manual entry selection

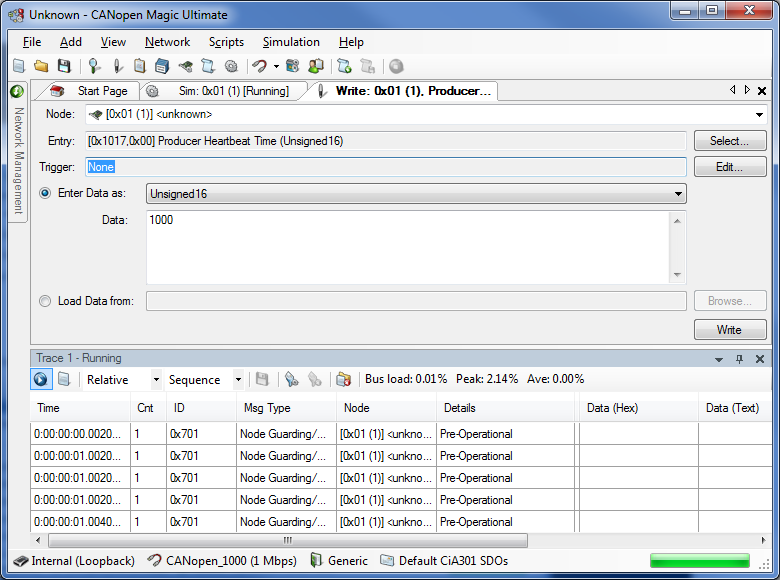

  • SDO Download (write to a node)

    • Enter data to write in ASCII

    • Enter data to write in decimal Integer and Unsigned integer

    • Enter data to write in Hexadecimal

    • Data to write read from a file

    • Manual entry selection

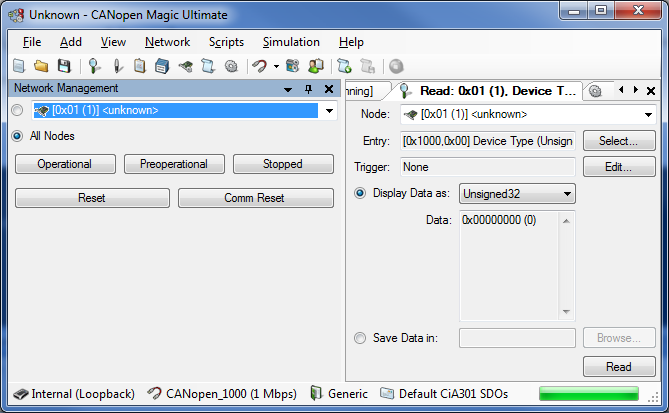

  • Network Management of all nodes or a single node

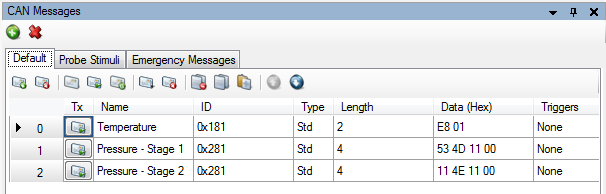

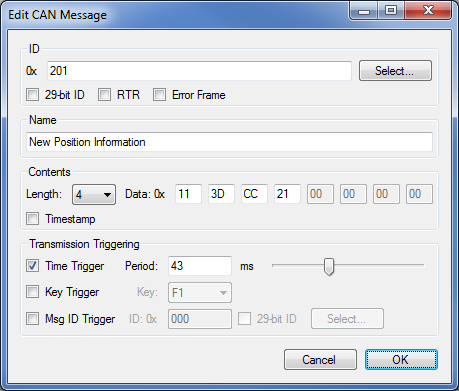

  • Transmission of up to 20 configurable messages

    • Manually enter IDs

    • Transmit on a keypress

    • Transmit on reception of a specific message ID

    • Configurable message contents and length

    • Display overview of all messages configured

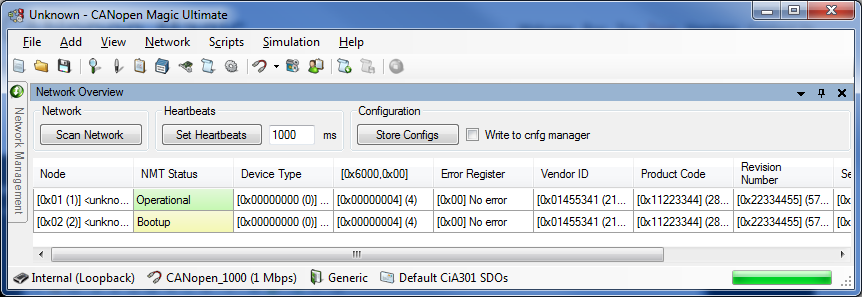

  • Network Overview Display

    • Automatically scans the network for nodes

    • Provides quick overview of available nodes and basic information

    • Continually displays current node state

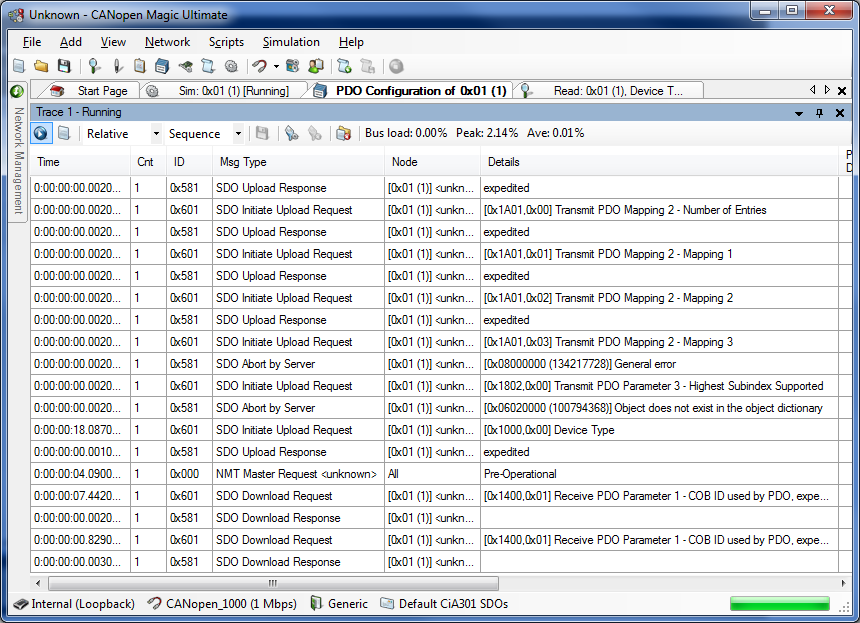

  • Configurable Trace Display

    • Stop and start for trace review

    • Stores 13000+ messages (0.5 seconds @ 1Mbps with 100% bus load)

    • CANopen interpretation of messages allowing easy viewing of network activity

    • Filtering of messages displayed

    • Continuous mode showing each message on the bus

    • Static mode showing the last message for each ID on the bus

    • Display of message contents in hexadecimal

    • Display of message contents in ASCII

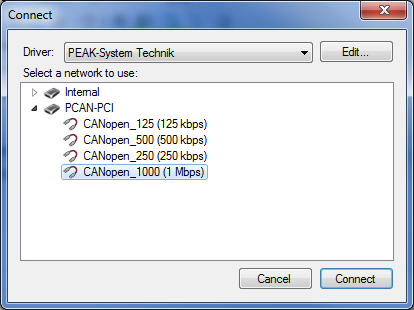

  • Works with all PEAK-System Technik CAN interfaces

  • Works with all Kvaser CAN interfaces

  • Monitoring of the last emergency transmitted by the currently selected node

  • Command line interface for batch programming and end of production line testing

  • Support for CiA 1301 - CANopen FD

    • USDO support

    • PDOs with up to 64-bytes of data

    • PEAK and Kvaser CAN-FD interfaces

    • Enhanced emergency messages

More Information, Screenshots and Comparison Tables

Visit the CANopen Magic product website for more information.

Pricing is per seat. Quantity discounts available.


Customers inside of the US (except California), Canada and Mexico can purchase a USB CAN interface with CANopen Magic as part of a bundle. Choose the desired interface from the drop down list. All other customers can purchase from their local PEAK or Kvaser distributor.


CANopen Magic Standard can run on Windows 7/8/8.1/10/11 with .NET Framework 4.0+ Any PEAK or Kvaser CAN interface is required. CANopen Magic Standard can work with any of the currently available interfaces. Internet connection required for activation.


Request a trial version and experience the features of CANopen Magic.
